What are orifice flanges?

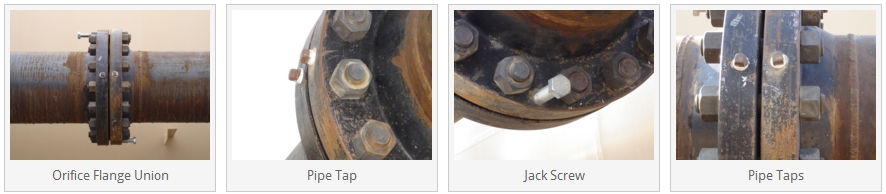

Orifice flanges are for metering the volumetric flow rate of liquids and gasses through a pipe. Two orifice flanges are called an orifice flange union. Each flange comes with two pipe taps for measuring the pressure drop of the flow through an orifice plate. Orifice plates do not come with the flanges and are sized based on the requirements of the process. Two jack screws are used to spread the flanges apart in order to change the orifice plate. This flange is normally available in weld neck, slip-on, and threaded flanges. These flanges have a raised face.

Orifice flanges are installed in a straight run of pipe

Orifice flanges are installed in a straight run of pipe in order to avoid turbulence at the plate. As a rule of thumb, an orifice flange has ten diameters of straight pipe upstream and five diameters of pipe downstream. There are guidelines set out in (American Gas Association) AGA Report #3 which is the Orifice Metering of Natural gas.


When installing the orifice plate flange the pressure taps need to be at the same elevation to each other. The assumption when making the calculation for the orifice plate is that static head of the tubes is the same on both sides of the orifice plate. Pressure taps should not be installed facing down as the taps could become plugged with debris in the line.


Weld neck orifice flanges are butt-welded into the pipeline. The inside diameter (bore diameter) of the pipe should be specified when ordering. Weldneck orifice flanges are available in ANSI classes 300, 600, 900, 1500 and 2500. They are not available in ANSI 150 sizes because the thickness of ANSI 150 flanges are not enough to allow for drilling pressure taps.


Size ½” (15 NB) to 48″ (1200NB)Class  150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75

MaterialGrade

Stainless Steel  ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L  Duplex Steel   ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61  Alloy Steel

ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91  Carbon Steel

ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70In FormSORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etcSpecializeAs per drawing Value Added Services» CNC Machining  » Customized FlangesStandardANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48Type of Flanges :» Weld Neck Flanges – WNRF » Socket Weld Flanges – SWRF » Slip On Raise Face – SORF » Blind Raise Face – BLRF » Lap Joint Flanges » Screwed (Threaded) Flanges » Long Weld Neck Flanges » Reducing » Spectacle Blind » Ring Joint » Large Dia Flanges » Orifice Flanges » Girth Flange
