Pipe cap (pipe end cap) is the pipe fittings designed to be the ends of a piping. it is used to block off the end of a piping system by placing the cap over the open pipe.
Pipe cap (pipe end cap) is usually used for protecting the end of pipe and other fittings, so the shape is disigned according to the shape of pipe line. We also use caps to cut off the transition and the connection treat can be butt weld,socket weld and thread conection according to use requirements.
It is commonly made from the one steel plate, so it should be seamless . The pipe end caps are available in various shapes, like the hemispherical, oval, round etc.
Pipe caps are widely well-known for the utmost output and outstanding results that it gives. Pipe Cap manufactured using superior grade raw materials. Pipe Cap are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.
Standard
GB,HG,ASME,ANSI,API,EN,BS,DIN,JIS,KS,GOST,AS.
Pipe cap size
Based on different materials, pipe caps include carbon steel cap, stainless steel cap, and alloy steel cap etc.
Depending on their construction, pipe caps contain threaded cap, tapered cap and anti-roll cap etc.
Seamless steel pipe cap: 1/2″-24″ DN15-DN600
Schedule/ Wall Thinkness
sch5s,sch10s,sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, SGP
Thickness: 2mm-80mm
Materials of Pipe cap (pipe end cap)
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

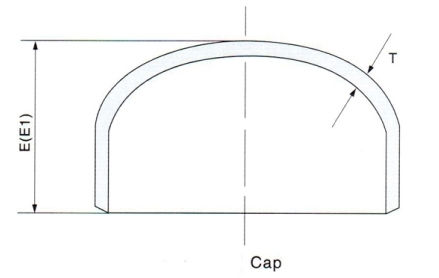

Dimensions Pipe cap (pipe end cap)(pipe end cap) Pipe capNominal Diameter(pipe end cap) Pipe cap Outside Diameter at Bevel(pipe end cap) Pipe cap Back to EndDNNPSSeries ASeries BETE1
151/2
21.3
18
254.5725
203/4
26.9
25
253.8125
251
33.7
32
384.5738
321.1/4
42.4
38
384.8338
401.1/2
48.3
45
385.0838
502
60.3
57
385.5944
652.1/2
76.1(73)
76
387.1151
803
88.9
89
517.6264
903.1/2
101.6
–
648.1376
1004
114.3
108
648.6476
1255
139.7
133
769.6589
1506
168.3
159
8910.92102
2008
219.1
219
10212.70127
25010
273.0
273
12712.70152
30012
323.9
325
15212.70178
35014
355.6
377
16512.70191
40016
406.4
426
17812.70203
45018
457.2
478
20312.70229
50020
508.0
529
22912.70254
55022
559
–
25412.70254
60024
610
630
26712.70305
65026
660
–267––
70028
711
720267 ––
75030
762
–267 ––
80032
813
820267––
85034
864
–267––
90036
914
920267––
95038
965
–305––
100040
1016
1020305––
105042
1067
–305––
110044
1118
1120343––
115046
1168
–343––
120048
1220
1220343––
PS: When T is less the dimension in parentheses, the height E is available. Otherwise E1 is available.
Wall Thickness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s Max. wall thickness: 200mm
