EN 1092-1 PN10 Type 01 Plate Flange

EN 1092-1 Type 01 Plate Flange

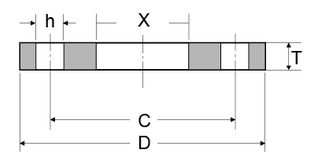

Dimensions & Weight Of EN 1092-1 PN10 Type 01 Plate FlangeRated DiameterPipeFlangeScrewsWeight/KG FlangeXCDThThreadBolt holesKG200219,1221,52953402422M2089,244250273,0276,53503952622M201211,788300323,9327,54004452622M201213,578350355,6359,54605053022M201621,766400406,4411,05155653226M241627,436450457,2462,05656153626M242033,470500508,0513,56206703826M242040,103600610,0616,57257804230M272054,297700711,0714,28408955030M272482,777800813,0815,895010155633M3024116,534900914,0917,4105011156233M3028141,42510001016,01019,0116012307036M3328188,56112001219,01224,0138014558339M3632290,884

If any inquiry about products, please feel free to contact us sales@wilsonpipeline.com

EN 1092-1 Type 01/02 Plate Flange:
