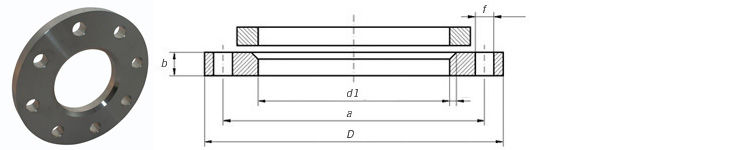

DIN2642-LOOSE FLANGE

DIN2642-LOOSE FLANGE

Pipe

Flange

Drilling

Appro. Weight

(7,85 Kg/dm3)

Kg

Rated

d1

D

d6

b

k

e

Number

Bolt Diameter

d2

Diameter

ISO

DIN

Series 1

Series 2

15

20

95

22

14

65

3

4

M 12

14

0,689

21,3

24

20

25

105

28

14

75

3

4

M 12

14

0,806

26,9

30

25

30

115

33

16

85

4

4

M 12

14

1,11

33,7

36

32

38

140

42

16

100

4

4

M 16

18

1,64

42,4

46

40

44,5

150

50

16

110

4

4

M 16

18

1,86

48,3

54

50

57

165

62

16

125

5

4

M 16

18

2,2

60,3

65

65

76,1

185

81

16

145

5

4

M 16

18

2,62

80

88,9

200

94

18

160

5

8

M 16

18

3,32

100

108

220

113

18

180

5

8

M 16

18

3,67

114,3

119

125

133

250

138

18

210

5

8

M 16

18

4,54

139,7

145

150

159

285

164

18

240

5

8

M 20

22

5,6

168,3

173

200

219,1

340

225

20

295

5

8

M 20

22

7,46

250

267

395

273

22

350

5

12

M 20

22

10,3

273

279

300

323,9

445

329

26

400

5

12

M 20

22

14

350

355,6

505

362

28

460

6

16

M 20

22

18,5

368

374

400

406,4

565

413

32

515

6

16

M 24

26

25

419

426

-450

457

615

467

38

565

6

20

M 24

26

30,6

500

508

670

517

38

620

6

20

M 24

26

37

600

610

780

618

44

725

7

20

M 27

30

56,3

700

711

895

721

50

840

7

24

M 27

30

80,4

800

813

1015

824

56

950

7

24

M 30

33

113,2
