DIN Plate Flange (Slip On Flange):

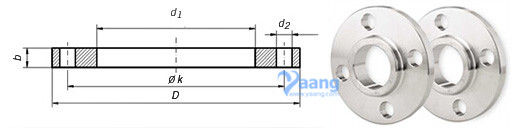

DIN 2545 PN40 Plate FlangeFlange Dimensions
Germany standard flange DIN 2543 for soldering or welding Nominal Pressure 16
Flansche, glatt zum löten oder schweißen DIN 2543 Nenndruck 16
Brides plates a souder DIN 2543 pression nominale 16BoreCommon DimensionRaised FaceDrillingApprox. Weight (Kg)Nominal Bored1DtKd4fNumber of Boltsxd2DIN 254310
149014604024M12(1/2″)140.63
17.2*15
209514654524M12(1/2″)140.72
21.3*20
2510516755824M12(1/2″)141.01
26.9*25
3011516856824M12(1/2″)141.23
33.7*32
38140161007824M16(5/8″)181.80
42.4*40
44.5150161108834M16(5/8″)182.09
48.3*50
571651812510234M16(5/8″)182.88
60.3*65
76.1*1851814512234M16(5/8″)183.6680
88.92002016013838M16(5/8″)184.77100
1082202018015838M16(5/8″)185.65
114.3*125
1332502221018838M16(5/8″)188.42
139.7*150
1592852224021238M20(3/4″)2310.4
168.3*200
21634024295268312M20(3/4″)2316.1
219.1*250
26740526355320312M24(7/8″)2724.9
273*300
31846028410378412M24(7/8″)2735.1
323.9*350
355.6*52030470438416M24(7/8″)2747.8
368400
406.4*58032525490416M27(1″)3063.5
419500
508*71536650610420M30(1-1/8″)33102.0
521
NOTE: 1. Facing according to DIN 2526 Flat face: Form A, Face without any requirements Form B, Face Rz=160, machined (not smoother than 40µm) Raised Face: Form C, Face Rz=160, machined (not smoother than 40µm) Form D, Face Rz=40, machined Form E, Face Rz=16, machined 2. Tongue and groove according to DIN 2512 Form F, Tongue Form N, Groove 3. Male and Female according to DIN 2513, DIN 2514 Form V13, V14, Male Form R13, R16, Female 4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695 5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
